MOTIVE / HME MOBILITY

This series features advanced gel technology, combining silica gel with electrolyte in the battery. It offers excellent charge acceptance, a long cycle life, and good low-temperature performance, making it a gel battery designed for superior climate resistance.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
4DB280	2		280			158	77	493	518	16.6
LGD15-12ANE	12		12.75		15	151	99	98	98	4.5
LG17-12	12		14.45		17	181	76	167	167	6.3
LG20-12N	12		17		20	181	76	167	167	6.7
LGD24-12ANE	12		20.4		24	181	77.5	169	169	7.1
LG24-12	12		20.4		24	166	175	125	125	9.3
LG30-12TN	12		25.5		30	166	126	176	176	9.68
LG32-12N	12		27.2		32	197	131	159	168	10.4
LG32-12	12		27.2		32	197	131	159	180	10.4
LG36-12N	12		30.6		36	197	131	159	170	10.7
LG40-12N	12		34		40	198	166	171	171	13.4
LG40-12	12		34		40	198	166	171	171	13.4
LG45-12N	12		38.25		45	198	166	171	171	13.5
LG45-12	12		38.25		45	198	166	171	171	13.5

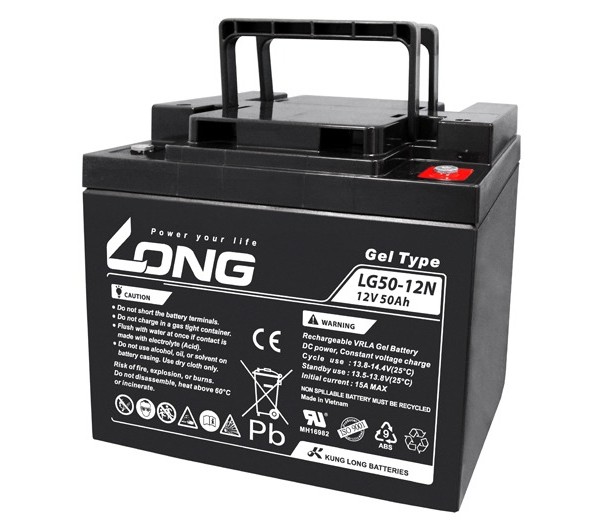

LG50-12N	12		42.5		50	199	166	171	171	15
LG50-12	12		42.5		50	199	166	171	171	15
LG55-12N	12		46.75		55	226	135	207	214	17
LG22NF305CN	12		52.7		62	226	135	207	214	18.5
LGC65-12RNE	12		55.25		65	259	168	176	178	21
LG65-12	12		55.25	65		350	166	174	174	23.9
LGK75-12N	12		63.75	75		260	170	202	207	24.8
LGL100-12RN	12		85	100		329.5	172.3	215	222	31.3
LGL100-12N	12		85	100		329.5	172.3	215	222	31.3
LGK100-12N	12		85	100		338	170	212	217	31.8
LGK12150NA	12		127.5		150	550	110	288	288	45
LGL150-12N	12		127.5	150		483	170	240	240	45.8
WP53-12ANE	12		45.05		53	198	165	171	171	15.4
WP68-12NE	12		57.8		68	226	135	207	214	18.2

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
4DB280	2		280			6.22	3.03	19.41	20.39	36.52
LGD15-12ANE	12		12.75		15	5.94	3.9	3.86	3.86	9.9
LG17-12	12		14.45		17	7.13	2.99	6.57	6.57	13.86
LG20-12N	12		17		20	7.13	2.99	6.57	6.57	14.74
LGD24-12ANE	12		20.4		24	7.13	3.05	6.65	6.65	15.62
LG24-12	12		20.4		24	6.54	6.89	4.92	4.92	20.46
LG30-12TN	12		25.5		30	6.54	4.96	6.93	6.93	21.3
LG32-12N	12		27.2		32	7.76	5.16	6.26	6.61	22.88
LG32-12	12		27.2		32	7.76	5.16	6.26	7.09	22.88
LG36-12N	12		30.6		36	7.76	5.16	6.26	6.69	23.54
LG40-12N	12		34		40	7.8	6.54	6.73	6.73	29.48
LG40-12	12		34		40	7.8	6.54	6.73	6.73	29.48
LG45-12N	12		38.25		45	7.8	6.54	6.73	6.73	29.7
LG45-12	12		38.25		45	7.8	6.54	6.73	6.73	29.7
LG50-12N	12		42.5		50	7.83	6.54	6.73	6.73	33
LG50-12	12		42.5		50	7.83	6.54	6.73	6.73	33
LG55-12N	12		46.75		55	8.9	5.31	8.15	8.43	37.4
LG22NF305CN	12		52.7		62	8.9	5.31	8.15	8.43	40.7
LGC65-12RNE	12		55.25		65	10.2	6.61	6.93	7.01	46.2
LG65-12	12		55.25	65		13.78	6.54	6.85	6.85	52.58
LGK75-12N	12		63.75	75		10.24	6.69	7.95	8.15	54.56
LGL100-12RN	12		85	100		12.97	6.78	8.46	8.74	68.86
LGL100-12N	12		85	100		12.97	6.78	8.46	8.74	68.86
LGK100-12N	12		85	100		13.31	6.69	8.35	8.54	69.96
LGK12150NA	12		127.5		150	21.65	4.33	11.34	11.34	99
LGL150-12N	12		127.5	150		19.02	6.69	9.45	9.45	100.76
WP53-12ANE	12		45.05		53	7.8	6.5	6.73	6.73	33.88
WP68-12NE	12		57.8		68	8.9	5.31	8.15	8.43	40.04

Electric Bikes

This series is developed and designed specifically for electric vehicles, featuring excellent cycle discharge characteristics.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
22NF305CNE	12		52.7		62	226	135	207	214	18.7
22NF305CN	12		52.7		62	226	135	207	214	18.7
KPH75-12NE	12		63.75	75		260	170	202	207	24.4
KPH100-12AUE	12		85		100	307	168	208	230	30
KPH100-12ANE	12		85		100	307	168	208	213	30
KPH110-12NE	12		93.5		110	338	170	212	217	31.8
U1-33HN	12		28.05		33	197	131	159	168	9.8
U1-33H	12		28.05		33	197	131	159	180	9.8
U1-34HNE	12		28.9		34	197	131	159	168	10.3
U1-34HE	12		28.9		34	197	131	159	180	10.3
U1-35NE	12		29.75		35	197	131	159	168	10.5
U1-35HE	12		29.75		35	197	131	159	180	10.5
U1-36HH	12		30.6		36	197	131	159	180	11
U1-36NE	12		30.6		36	197	131	159	168	11
U1-36HE	12		30.6		36	197	131	159	180	11
WP5-12E	12		4.25		5	90	70	101.5	107	1.9
WP10-12SE	12		8.5		10	151	65	112	118.5	3.29
WP12-12NE	12		10.2		12	151	98	93	94	4.02
WP12-12E	12		10.2		12	151	98	93	98	4.02
WP14-12SE	12		11.9		14	151	98	95	100	4.4
WP14-12NE	12		11.9		14	151	98	95	96	4.4
WP20-12IE	12		17		20	181	76	167	167	5.95
WP22-12IE	12		18.7		22	181	76	167	171	6.9
WP22-12NE	12		18.7		22	181	76	167	167	6.9
WP24-12ANE	12		20.4		24	181	77.5	169	169	7.14
WP26-12E	12		22.1		26	166	175	125	125	9.3
WP26-12NE	12		22.1		26	166	175	125	125	9.3
WP30-12TNE	12		25.5		30	166	125.5	176	176	9.7
WP40-12NE	12		34		40	198	166	171	171	13.4
WP40-12E	12		34		40	198	166	171	171	13.4
WP45-12NE	12		38.25		45	198	166	171	171	13.5
WP45-12E	12		38.25		45	198	166	171	171	13.5

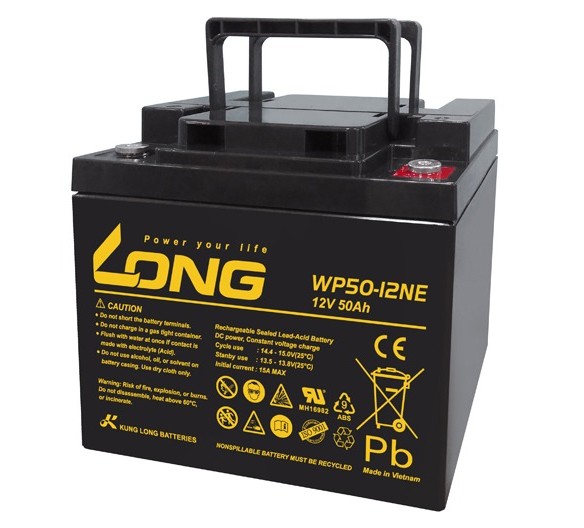

WP50-12NE	12		42.5		50	199	166	171	171	15
WP55-12E	12		46.75		55	226	135	207	229	17.3
WP55-12NE	12		46.75		55	226	135	207	214	17.3

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
22NF305CNE	12		52.7		62	8.9	5.31	8.15	8.43	41.14
22NF305CN	12		52.7		62	8.9	5.31	8.15	8.43	41.14
KPH75-12NE	12		63.75	75		10.24	6.69	7.95	8.15	53.68
KPH100-12AUE	12		85		100	12.09	6.61	8.19	9.06	66
KPH100-12ANE	12		85		100	12.09	6.61	8.19	8.39	66
KPH110-12NE	12		93.5		110	13.31	6.69	8.35	8.54	69.96
U1-33HN	12		28.05		33	7.76	5.16	6.26	6.61	21.56
U1-33H	12		28.05		33	7.76	5.16	6.26	7.09	21.56
U1-34HNE	12		28.9		34	7.76	5.16	6.26	6.61	22.66
U1-34HE	12		28.9		34	7.76	5.16	6.26	7.09	22.66
U1-35NE	12		29.75		35	7.76	5.16	6.26	6.61	23.1
U1-35HE	12		29.75		35	7.76	5.16	6.26	7.09	23.1
U1-36HH	12		30.6		36	7.76	5.16	6.26	7.09	24.2
U1-36NE	12		30.6		36	7.76	5.16	6.26	6.61	24.2
U1-36HE	12		30.6		36	7.76	5.16	6.26	7.09	24.2
WP5-12E	12		4.25		5	3.54	2.76	4	4.21	4.18
WP10-12SE	12		8.5		10	5.94	2.56	4.41	4.67	7.24
WP12-12NE	12		10.2		12	5.94	3.86	3.66	3.7	8.84
WP12-12E	12		10.2		12	5.94	3.86	3.66	3.86	8.84
WP14-12SE	12		11.9		14	5.94	3.86	3.74	3.94	9.68
WP14-12NE	12		11.9		14	5.94	3.86	3.74	3.78	9.68
WP20-12IE	12		17		20	7.13	2.99	6.57	6.57	13.09
WP22-12IE	12		18.7		22	7.13	2.99	6.57	6.73	15.18
WP22-12NE	12		18.7		22	7.13	2.99	6.57	6.57	15.18
WP24-12ANE	12		20.4		24	7.13	3.05	6.65	6.65	15.71
WP26-12E	12		22.1		26	6.54	6.89	4.92	4.92	20.46
WP26-12NE	12		22.1		26	6.54	6.89	4.92	4.92	20.46
WP30-12TNE	12		25.5		30	6.54	4.94	6.93	6.93	21.34
WP40-12NE	12		34		40	7.8	6.54	6.73	6.73	29.48
WP40-12E	12		34		40	7.8	6.54	6.73	6.73	29.48
WP45-12NE	12		38.25		45	7.8	6.54	6.73	6.73	29.7
WP45-12E	12		38.25		45	7.8	6.54	6.73	6.73	29.7
WP50-12NE	12		42.5		50	7.83	6.54	6.73	6.73	33
WP55-12E	12		46.75		55	8.9	5.31	8.15	9.02	38.06
WP55-12NE	12		46.75		55	8.9	5.31	8.15	8.43	38.06

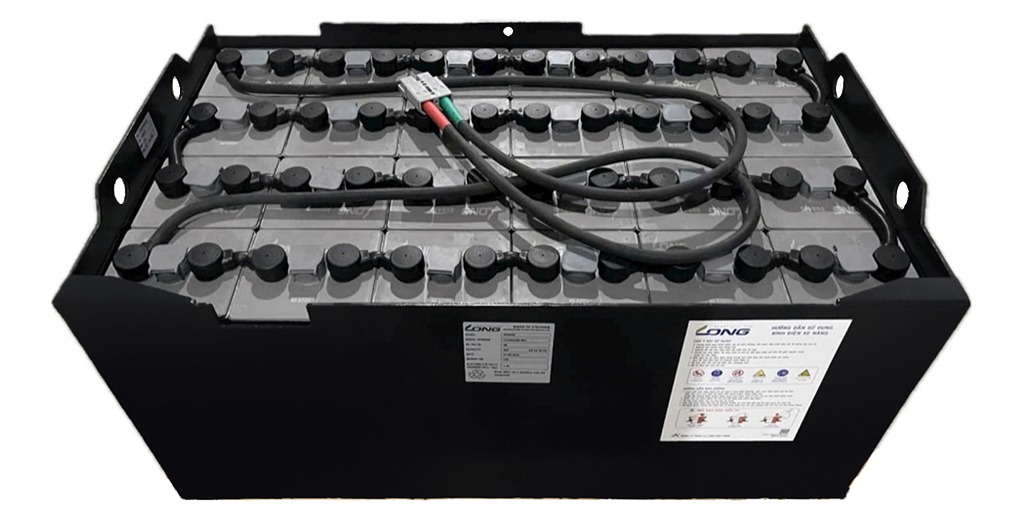

Lead-acid forklift batteries

TLONG lead-acid forklift batteries are widely favored in the logistics industry for their exceptional performance. Featuring a unique lead-antimony alloy, these batteries offer superior durability and stability, making them ideal for prolonged use. Moreover, the innovative formulation with nano-level carbon materials significantly extends the battery’s lifespan while effectively reducing water loss, ensuring a more consistent energy supply. Opt for these lead-acid forklift batteries to enhance the efficiency and reliability of your operations, fostering continuous business growth.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
10DB600	2		600			158	173	404	429	31.4
10DB700	2		700			158	173	493	518	39.7
3DB210	2		195			158	61	493	518	13.4
3DC375	2		375			198	65	573	595	20.4
4DB280	2		280			158	77	493	518	16.6
5DB350	2		350			158	89	493	518	20.2
5DC775	2		775			198	101	722	744	36.2
6DB390H	2		390			158	109	451	476	22.4
6DB420	2		420			158	109	493	525	23.5
6DB450	2		450			158	109	493	518	24.8
6DC930	2		930			198	119	722	744	63.2
7DB560	2		560			158	125	553	578	32
7DB600	2		600			158	125	569	594	33.4
8DB440	2		440			158	141	395	420	25.7
9DB500	2		500			158	158	395	420	28.7

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
10DB600	2		600			6.22	6.81	15.91	16.89	69.08
10DB700	2		700			6.22	6.81	19.41	20.39	87.34
3DB210	2		195			6.22	2.4	19.41	20.39	29.48
3DC375	2		375			7.8	2.56	22.56	23.43	44.88
4DB280	2		280			6.22	3.03	19.41	20.39	36.52
5DB350	2		350			6.22	3.5	19.41	20.39	44.44
5DC775	2		775			7.8	3.98	28.43	29.29	79.64
6DB390H	2		390			6.22	4.29	17.76	18.74	49.28
6DB420	2		420			6.22	4.29	19.41	20.67	51.7
6DB450	2		450			6.22	4.29	19.41	20.39	54.56
6DC930	2		930			7.8	4.69	28.43	29.29	139.04
7DB560	2		560			6.22	4.92	21.77	22.76	70.4
7DB600	2		600			6.22	4.92	22.4	23.39	73.48
8DB440	2		440			6.22	5.55	15.55	16.54	56.54
9DB500	2		500			6.22	6.22	15.55	16.54	63.14

Golf Cart

This series is a specially designed battery for golf carts, offering excellent cycle discharge characteristics.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
GF170-8	8		139.4		170	260	183	245	287	28

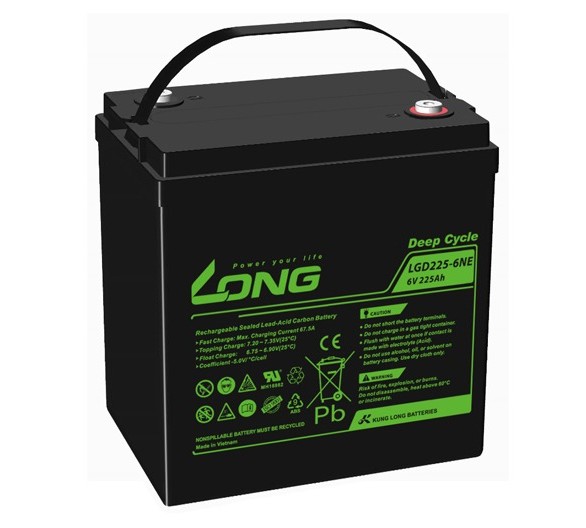

LGD225-6NE	6		191.3		225	260	180	265	272	30.5

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
GF170-8	8		139.4		170	10.24	7.2	9.65	11.3	61.6
LGD225-6NE	6		191.3		225	10.24	7.09	10.43	10.71	67.1
