IDC/ UPS High Rate

Extreme High rate Series

This series is designed for high power discharge characteristics, allowing for a smaller size and weight while achieving better high-rate discharge performance.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
WXL1225W	12	23			5	90	70	101.5	107	1.9
WXL1235W	12	35			8.5	151	65	94	102	2.7
WXL1250W	12	50			14	151	98	95	100	4.3
WXL1280WN	12	80			20	181	76	167	167	6.3
WXL12100WN	12	100			28	166	125.5	176	176	9.2
WXL12135WN	12	135			36	197	131	159	168	11
WXL12135W	12	135			36	197	131	159	180	11
WXL12150WN	12	150			40	198	166	171	171	13.4
WXL12150W	12	150			40	198	166	171	171	13.5
WXL12205WN	12	205			55	226	135	207	214	17.1
WXL12205W	12	205			55	226	135	207	229	17.1
WXL12245WN	12	245			65	350	167	179	179	20.5
WXL12265WN	12	265			70	350	167	179	179	22.5
WXL12300WN	12	300			75	260	170	202	207	24.2
WXL12365WN	12	365			95	306	168	206	213	29.5
WXL12345WFT	12	345			100	507	106	235	235	31.3
WXL12420WIN	12	420			110	341	173	215	219	34
WXL12420WN	12	420			110	341	173	215	219	34
WXL12450WN	12	450			115	376	172	221	225	37.5
WXL12505WIN	12	505			130	338	173	276	278	42
WXL12505WN	12	505			130	338	173	276	281	42
WXL12550WIN	12	550			140	341	173	276	278	45
WXL12550WN	12	550			140	338	173	276	281	45
WXL12450WFT	12	450			150	550	110	288	288	44.3
WXL12500WFT	12	500			150	550	110	288	288	50.5
WXL12620WIN	12	620			150	341	173	276	278	46.1
WXL12620WN	12	620			150	338	173	276	281	46.1
WXL12710WIFT	12	710			190	558	127	317	317	59.5
WXL12710WFT	12	710			190	558	127	317	317	59.5
WXL12710WN	12	710			200	532	207	214	219	58
WXL12820WN	12	820			200	522	238	219	224	66.4
WXL12800WFT	12	800			210	501	227	216	236	66
WXL12900WFT	12	900			240	501	260	216	236	72
WXL12950WFT	12	950			250	501	260	216	236	75

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
WXL1225W	12	23			5	3.54	2.76	4	4.21	4.18
WXL1235W	12	35			8.5	5.94	2.56	3.7	4.02	5.94
WXL1250W	12	50			14	5.94	3.86	3.74	3.94	9.46
WXL1280WN	12	80			20	7.13	2.99	6.57	6.57	13.86
WXL12100WN	12	100			28	6.54	4.94	6.93	6.93	20.24
WXL12135WN	12	135			36	7.76	5.16	6.26	6.61	24.2
WXL12135W	12	135			36	7.76	5.16	6.26	7.09	24.2
WXL12150WN	12	150			40	7.8	6.54	6.73	6.73	29.48
WXL12150W	12	150			40	7.8	6.54	6.73	6.73	29.7
WXL12205WN	12	205			55	8.9	5.31	8.15	8.43	37.62
WXL12205W	12	205			55	8.9	5.31	8.15	9.02	37.62
WXL12245WN	12	245			65	13.78	6.57	7.05	7.05	45.1
WXL12265WN	12	265			70	13.78	6.57	7.05	7.05	49.5
WXL12300WN	12	300			75	10.24	6.69	7.95	8.15	53.24
WXL12365WN	12	365			95	12.05	6.61	8.11	8.39	64.9
WXL12345WFT	12	345			100	19.96	4.17	9.25	9.25	68.86
WXL12420WIN	12	420			110	13.43	6.81	8.46	8.62	74.8
WXL12420WN	12	420			110	13.43	6.81	8.46	8.62	74.8
WXL12450WN	12	450			115	14.8	6.77	8.7	8.86	82.5
WXL12505WIN	12	505			130	13.31	6.81	10.87	10.94	92.4
WXL12505WN	12	505			130	13.31	6.81	10.87	11.06	92.4
WXL12550WIN	12	550			140	13.43	6.81	10.87	10.94	99
WXL12550WN	12	550			140	13.31	6.81	10.87	11.06	99
WXL12450WFT	12	450			150	21.65	4.33	11.34	11.34	97.46
WXL12500WFT	12	500			150	21.65	4.33	11.34	11.34	111.1
WXL12620WIN	12	620			150	13.43	6.81	10.87	10.94	101.42
WXL12620WN	12	620			150	13.31	6.81	10.87	11.06	101.42
WXL12710WIFT	12	710			190	21.97	5	12.48	12.48	130.9
WXL12710WFT	12	710			190	21.97	5	12.48	12.48	130.9
WXL12710WN	12	710			200	20.94	8.15	8.43	8.62	127.6
WXL12820WN	12	820			200	20.55	9.37	8.62	8.82	146.08
WXL12800WFT	12	800			210	19.72	8.94	8.5	9.29	145.2
WXL12900WFT	12	900			240	19.72	10.24	8.5	9.29	158.4
WXL12950WFT	12	950			250	19.72	10.24	8.5	9.29	165

High Temperature Series

This series is a battery developed and designed for use in special environments, featuring a wide temperature range and good charging recovery characteristics after deep discharge.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
HTP12245WN	12	245			65	350	167	179	179	20.5
HTP12265WN	12	265			70	350	167	179	179	22.5
HTP12300WN	12	300			75	260	170	202	207	24.2
HTP12365WN	12	365			95	306	168	206	213	29.5
HTP12345WFT	12	345			100	507	106	235	235	31.3
HTP12420WN	12	420			110	341	173	215	219	34
HTP12450WN	12	450			115	376	172	221	225	37.5
HTP12505WN	12	505			130	338	173	276	281	42
HTP12550WN	12	550			140	338	173	276	281	45
HTP12450WFT	12	450			150	550	110	288	288	44.3
HTP12500WFT	12	500			150	550	110	288	288	50.5
HTP12710WIFT	12	710			190	558	127	317	317	59.5
HTP12710WFT	12	710			190	558	127	317	317	59.5
HTP12600WN	12	600			200	532	207	214	219	55
HTP12710WN	12	710			200	532	207	214	219	58
HTP12820WN	12	820			200	522	238	219	224	66.4
HTP50-12N	12		42.5	47.5		199	166	171	171	14.8
HTP75-12N	12		63.75	75		260	170	202	207	24.2
HTP100-12RN	12		85			329.5	172.3	215	222	31.5
HTP100-12N	12		85			338	170	212	217	32.5
HTP12100A	12		85	100		507	106	235	235	34
HTP150-12N	12		127.5	150		483	170	240	240	48.4

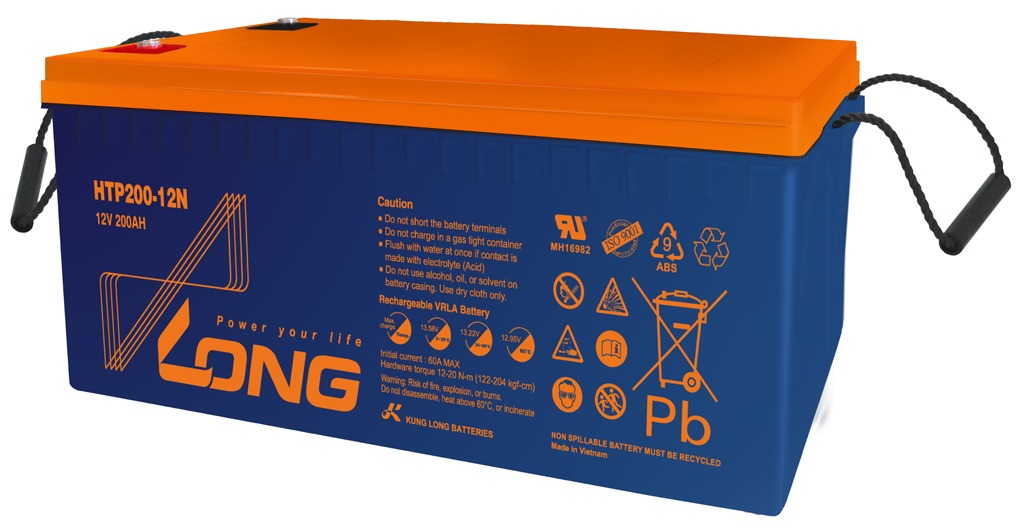

HTP200-12N	12		170	200		522	238	219	224	73.2

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
HTP12245WN	12	245			65	13.78	6.57	7.05	7.05	45.1
HTP12265WN	12	265			70	13.78	6.57	7.05	7.05	49.5
HTP12300WN	12	300			75	10.24	6.69	7.95	8.15	53.24
HTP12365WN	12	365			95	12.05	6.61	8.11	8.39	64.9
HTP12345WFT	12	345			100	19.96	4.17	9.25	9.25	68.86
HTP12420WN	12	420			110	13.43	6.81	8.46	8.62	74.8
HTP12450WN	12	450			115	14.8	6.77	8.7	8.86	82.5
HTP12505WN	12	505			130	13.31	6.81	10.87	11.06	92.4
HTP12550WN	12	550			140	13.31	6.81	10.87	11.06	99
HTP12450WFT	12	450			150	21.65	4.33	11.34	11.34	97.46
HTP12500WFT	12	500			150	21.65	4.33	11.34	11.34	111.1
HTP12710WIFT	12	710			190	21.97	5	12.48	12.48	130.9
HTP12710WFT	12	710			190	21.97	5	12.48	12.48	130.9
HTP12600WN	12	600			200	20.94	8.15	8.43	8.62	121
HTP12710WN	12	710			200	20.94	8.15	8.43	8.62	127.6
HTP12820WN	12	820			200	20.55	9.37	8.62	8.82	146.08
HTP50-12N	12		42.5	47.5		7.83	6.54	6.73	6.73	32.56
HTP75-12N	12		63.75	75		10.24	6.69	7.95	8.15	53.24
HTP100-12RN	12		85			12.97	6.78	8.46	8.74	69.3
HTP100-12N	12		85			13.31	6.69	8.35	8.54	71.5
HTP12100A	12		85	100		19.96	4.17	9.25	9.25	74.8
HTP150-12N	12		127.5	150		19.02	6.69	9.45	9.45	106.48
HTP200-12N	12		170	200		20.55	9.37	8.62	8.82	161.04

Long life series

This series features a special grid alloy design with excellent corrosion resistance, making it a long-life VRLA lead-acid battery.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
WPL1235W	12	35			8.5	151	65	94	102	2.65
WPL5-12SHR	12		4.25		5	90	70	101.5	107	1.93
WPL5-12	12		4.25		5	90	70	101.5	107	1.85
WPL7.2-12	12		6.12		7.2	151	65	94	102	2.4
WPL12-12	12		10.2		12	151	98	93	98	4.02
WPL14-12S	12		11.9		14	151	98	95	100	4.3
WPL18-12NSHR	12		15.3		18	181	76	167	167	5.67
WPL18-12SHR	12		15.3		18	181	76	167	167	5.67
WPL26-12NB	12		22.1		26	166	175	125	125	8
WPL26-12N	12		22.1		26	166	175	125	125	8.8
WPL26-12B	12		22.1		26	166	175	125	125	8
WPL26-12	12		22.1		26	166	175	125	125	8.8
WPL28-12TN	12		23.8		28	166	125.5	176	176	9.2
WPL28-12TM	12		23.8		28	166	125.5	176	176	9.18
WPL34-12N	12		28.9		34	197	131	159	168	10.3
WPL36-12N	12		30.6		36	197	131	159	168	11
WPL36-12	12		30.6		36	197	131	159	180	11
WPL40-12N	12		34		40	198	166	171	171	13.4
WPL40-12	12		34		40	198	166	171	171	13.4
WPL45-12N	12		38.25		45	198	166	171	171	13.5
WPL45-12	12		38.25		45	198	166	171	171	13.5
WPL50-12N	12		42.5		50	199	166	171	171	15
WPL50-12	12		42.5		50	199	166	171	171	15
WPL55-12N	12		46.75		55	226	135	207	214	17
WPL55-12	12		46.75		55	226	135	207	229	17
WPL60-12ARN	12		51		60	350	167	179	179	20.5
WPL60-12AN	12		51		60	350	167	179	179	20.5
WPL65-12AN	12		55.25		65	350	167	179	179	20.5
WPL65-12ARN	12		55.25		65	350	167	179	179	20.5
WPL90-12RN	12		76.5	90		329.5	172.3	215	222	29
WPL100-12RN	12		85		100	329.5	172.3	215	222	31.3
WPL100-12RU	12		85		100	329.5	172.3	215	239.5	31.3
WPL120-12RN	12		102		120	408	177	224	224	35.5
WPL125-12RN	12		106.25		125	408	177	224	224	39.6
WPL130-12N	12		110.5	130		483	170	240	240	42.6
WPL150-12N	12		127.5		150	483	170	240	240	45.5
WPL12550WN	12		131.75		155	483	170	240	240	49.8
WPL155-12N	12		131.75	155		483	170	240	240	48.2
WPL200-12SN	12		170		200	522	238	219	224	58.5
WPL200-12BN	12		170	200		522	238	219	224	61

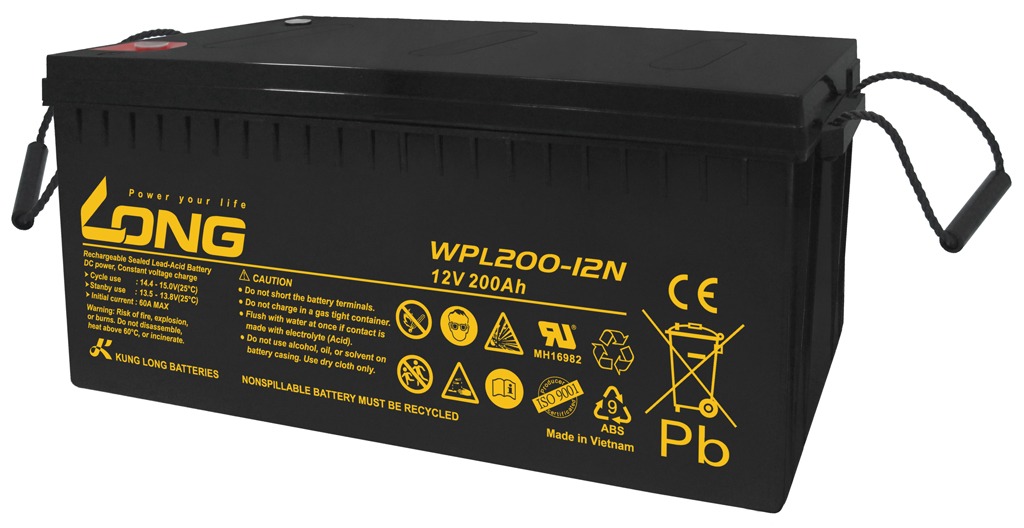

WPL200-12N	12		170	200		522	238	219	224	68
WPL230-12N	12		195.5	230		522	238	219	224	73.1

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
WPL1235W	12	35			8.5	5.94	2.56	3.7	4.02	5.83
WPL5-12SHR	12		4.25		5	3.54	2.76	4	4.21	4.25
WPL5-12	12		4.25		5	3.54	2.76	4	4.21	4.07
WPL7.2-12	12		6.12		7.2	5.94	2.56	3.7	4.02	5.28
WPL7.2-12	12		6.12		7.2	5.94	2.56	3.7	4.02	5.28
WPL12-12	12		10.2		12	5.94	3.86	3.66	3.86	8.84
WPL14-12S	12		11.9		14	5.94	3.86	3.74	3.94	9.46
WPL18-12NSHR	12		15.3		18	7.13	2.99	6.57	6.57	12.47
WPL18-12SHR	12		15.3		18	7.13	2.99	6.57	6.57	12.47
WPL26-12NB	12		22.1		26	6.54	6.89	4.92	4.92	17.6
WPL26-12N	12		22.1		26	6.54	6.89	4.92	4.92	19.36
WPL26-12B	12		22.1		26	6.54	6.89	4.92	4.92	17.6
WPL26-12	12		22.1		26	6.54	6.89	4.92	4.92	19.36
WPL28-12TN	12		23.8		28	6.54	4.94	6.93	6.93	20.24
WPL28-12TM	12		23.8		28	6.54	4.94	6.93	6.93	20.2
WPL34-12N	12		28.9		34	7.76	5.16	6.26	6.61	22.66
WPL36-12N	12		30.6		36	7.76	5.16	6.26	6.61	24.2
WPL36-12	12		30.6		36	7.76	5.16	6.26	7.09	24.2
WPL40-12N	12		34		40	7.8	6.54	6.73	6.73	29.48
WPL40-12	12		34		40	7.8	6.54	6.73	6.73	29.48
WPL45-12N	12		38.25		45	7.8	6.54	6.73	6.73	29.7
WPL45-12	12		38.25		45	7.8	6.54	6.73	6.73	29.7
WPL50-12N	12		42.5		50	7.83	6.54	6.73	6.73	33
WPL50-12	12		42.5		50	7.83	6.54	6.73	6.73	33
WPL55-12N	12		46.75		55	8.9	5.31	8.15	8.43	37.4
WPL55-12	12		46.75		55	8.9	5.31	8.15	9.02	37.4
WPL60-12ARN	12		51		60	13.78	6.57	7.05	7.05	45.1
WPL60-12AN	12		51		60	13.78	6.57	7.05	7.05	45.1
WPL65-12AN	12		55.25		65	13.78	6.57	7.05	7.05	45.1
WPL65-12ARN	12		55.25		65	13.78	6.57	7.05	7.05	45.1
WPL90-12RN	12		76.5	90		12.97	6.78	8.46	8.74	63.8
WPL100-12RN	12		85		100	12.97	6.78	8.46	8.74	68.86
WPL100-12RU	12		85		100	12.97	6.78	8.46	9.43	68.86
WPL120-12RN	12		102		120	16.06	6.97	8.82	8.82	78.1
WPL125-12RN	12		106.25		125	16.06	6.97	8.82	8.82	87.12
WPL130-12N	12		110.5	130		19.02	6.69	9.45	9.45	93.72
WPL150-12N	12		127.5		150	19.02	6.69	9.45	9.45	100.1
WPL12550WN	12		131.75		155	19.02	6.69	9.45	9.45	109.56
WPL155-12N	12		131.75	155		19.02	6.69	9.45	9.45	106.04
WPL200-12SN	12		170		200	20.55	9.37	8.62	8.82	128.7
WPL200-12BN	12		170	200		20.55	9.37	8.62	8.82	134.2
WPL200-12N	12		170	200		20.55	9.37	8.62	8.82	149.6

High Rate Series

This series is a power universal type battery, featuring a special lead paste formula and dedicated fiberglass separator, providing low resistance and excellent high-rate discharge performance.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
WP1213W	12	13			3.3	134	67	59.5	65.5	1.3
WP1224W	12	24			6	151	51	94	101	1.95
WP7-12(28W)T	12	28			7	151	65	94	106	2.19
WP7-12(28W)	12	28			7	151	65	94	102	2.18
WP1234W	12	34			8.5	151	65	94	102	2.5
WP1236WT	12	36			9	151	65	94	106	2.7

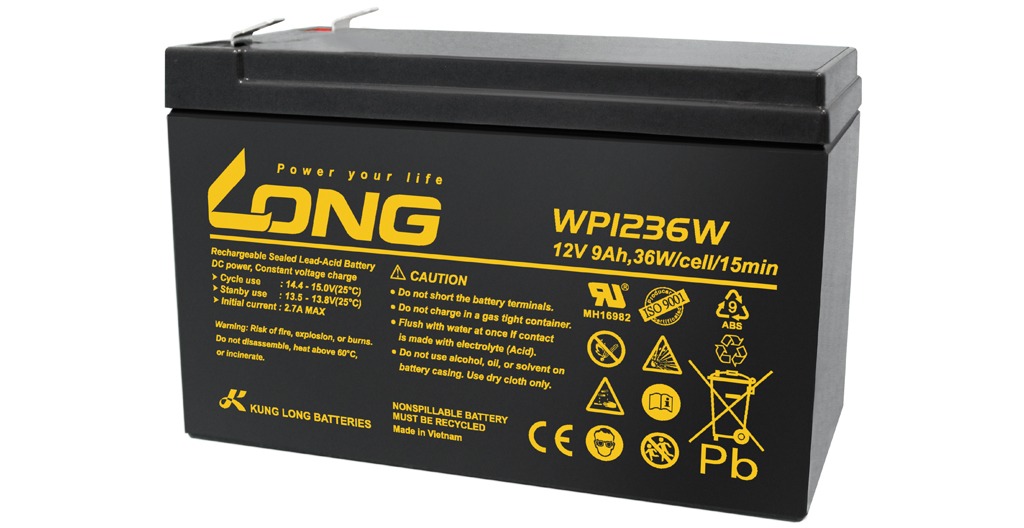

WP1236W	12	36			9	151	65	94	102	2.7
WP1251W	12	51			12	151	98	93	98	3.65
WP5-12SHR	12		4.25		5	90	70	101.5	107	1.93
WP5-12	12		4.25		5	90	70	101.5	107	1.9
WP9-12SHR	12		7.65		9	151	65	94	102	2.7
WP18-12SHR	12		15.3		18	181	76	167	167	5.6
WP18-12NSHR	12		15.3		18	181	76	167	167	5.6
WP20-12U	12		17		20	181	76	167	167	5.95
WP20-12N	12		17		20	181	76	167	167	5.95
WP20-12I	12		17		20	181	76	167	167	5.95
WP20-12	12		17		20	181	76	167	167	5.95
WP22-12SN	12		18.7		22	181	77	170	170	7.05
WP22-12NSHR	12		18.7		22	181	77	167	167	6.7
WP22-12ASN	12		18.7		22	181	77	170	180.6	7.05
WP22-12N	12		18.7		22	181	76	167	167	6.9
WP40-12N	12		34		40	198	166	171	171	13.4
WP40-12	12		34		40	198	166	171	171	13.4
WP45-12N	12		38.25		45	198	166	171	171	13.5
WP45-12	12		38.25		45	198	166	171	171	13.5
WP50-12N	12		42.5		50	199	166	171	171	15
WP50-12	12		42.5		50	199	166	171	171	15

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
WP1213W	12	13			3.3	5.28	2.64	2.34	2.58	2.86
WP1224W	12	24			6	5.94	2.01	3.7	3.98	4.29
WP7-12(28W)T	12	28			7	5.94	2.56	3.7	4.17	4.82
WP7-12(28W)	12	28			7	5.94	2.56	3.7	4.02	4.8
WP1234W	12	34			8.5	5.94	2.56	3.7	4.02	5.5
WP1236WT	12	36			9	5.94	2.56	3.7	4.17	5.94
WP1236W	12	36			9	5.94	2.56	3.7	4.02	5.94
WP1251W	12	51			12	5.94	3.86	3.66	3.86	8.03
WP5-12SHR	12		4.25		5	3.54	2.76	4	4.21	4.25
WP5-12	12		4.25		5	3.54	2.76	4	4.21	4.18
WP9-12SHR	12		7.65		9	5.94	2.56	3.7	4.02	5.94
WP18-12SHR	12		15.3		18	7.13	2.99	6.57	6.57	12.32
WP18-12NSHR	12		15.3		18	7.13	2.99	6.57	6.57	12.32
WP20-12U	12		17		20	7.13	2.99	6.57	6.57	13.09
WP20-12N	12		17		20	7.13	2.99	6.57	6.57	13.09
WP20-12I	12		17		20	7.13	2.99	6.57	6.57	13.09
WP20-12	12		17		20	7.13	2.99	6.57	6.57	13.09
WP22-12SN	12		18.7		22	7.13	3.03	6.69	6.69	15.51
WP22-12NSHR	12		18.7		22	7.13	3.03	6.57	6.57	14.74
WP22-12ASN	12		18.7		22	7.13	3.03	6.69	7.11	15.51
WP22-12N	12		18.7		22	7.13	2.99	6.57	6.57	15.18
WP40-12N	12		34		40	7.8	6.54	6.73	6.73	29.48
WP40-12	12		34		40	7.8	6.54	6.73	6.73	29.48
WP45-12N	12		38.25		45	7.8	6.54	6.73	6.73	29.7
WP45-12	12		38.25		45	7.8	6.54	6.73	6.73	29.7
WP50-12N	12		42.5		50	7.83	6.54	6.73	6.73	33
WP50-12	12		42.5		50	7.83	6.54	6.73	6.73	33

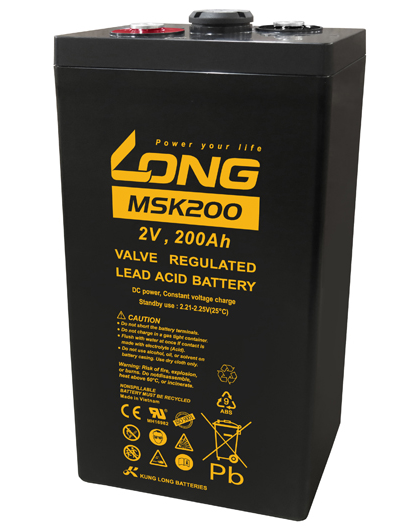

2V Series

This series consists of 2V monoblock long-life sealed valve-regulated lead-acid (VRLA) batteries.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
MSK75	2		63.75	75		170	72	205	208	6.4
MSK100A	2		85	100		170	72	205	208	6.8
MSK200	2		170	200		170	106	333	342.5	14
MSK300	2		255	300		170	150	333	342.5	21.2
MSK400	2		340	400		197	170	333	342.5	25.5
MSK440	2		374	440		197	170	333	342.5	29.7
MSK500	2		425	500		241	172	329.5	340	33.5
MSK600	2		510	600		241	172	329.5	340	35.7
MSK1000SN	2		850	1000		303	172	477	488	62.5

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
MSK75	2		63.75	75		6.69	2.83	8.07	8.19	14.08
MSK100A	2		85	100		6.69	2.83	8.07	8.19	14.96
MSK200	2		170	200		6.69	4.17	13.11	13.48	30.8
MSK300	2		255	300		6.69	5.91	13.11	13.48	46.64
MSK400	2		340	400		7.76	6.69	13.11	13.48	56.1
MSK440	2		374	440		7.76	6.69	13.11	13.48	65.34
MSK500	2		425	500		9.49	6.77	12.97	13.39	73.7
MSK600	2		510	600		9.49	6.77	12.97	13.39	78.54
MSK1000SN	2		850	1000		11.93	6.77	18.78	19.21	137.5

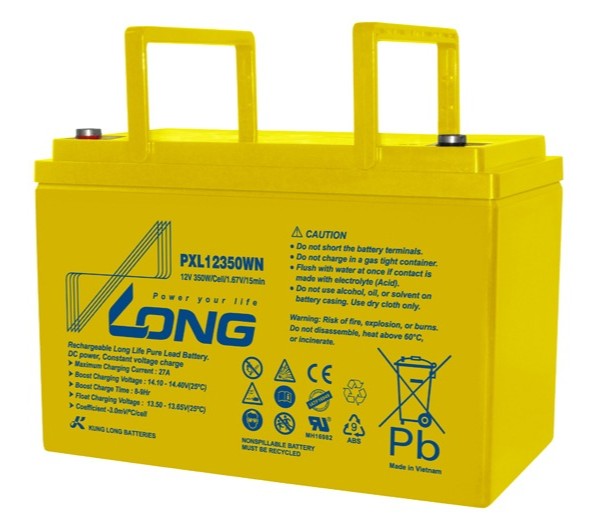

Pure Lead Series

This series uses a pure lead design with a special formula, offering excellent overcharge resistance and corrosion resistance. The float life is longer than that of standard VRLA batteries.

Metric mm/kg
Imperial inch/lbs

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
PXL12220WRN	12	220			65	259	168	176	178	20.6
PXL12260WN	12	260			75	260	170	202	207	24.5
PXL12350WN	12	350			95	307	168	208	213	26
PXL12365WN	12	365			100	330	173	215	222	29.5
PXL12400WN	12	400			100	338	170	212	217	30.3
PXL12700WN	12	700			200	522	238	219	224	60
PXL12750WN	12	750			200	522	238	219	224	61.6

Battery Model	NOMINAL VOLTAGE(V)	NOMINAL CAPACITY(Ah)				DIMENSION				WEIGHT	PDF
Battery Model	NOMINAL VOLTAGE(V)	Watt	5HR	10HR	20HR	L	W	H	HT	WEIGHT	PDF
PXL12220WRN	12	220			65	10.2	6.61	6.93	7.01	45.32
PXL12260WN	12	260			75	10.24	6.69	7.95	8.15	53.9
PXL12350WN	12	350			95	12.09	6.61	8.19	8.39	57.2
PXL12365WN	12	365			100	12.99	6.81	8.46	8.74	64.9
PXL12400WN	12	400			100	13.31	6.69	8.35	8.54	66.66
PXL12700WN	12	700			200	20.55	9.37	8.62	8.82	132
PXL12750WN	12	750			200	20.55	9.37	8.62	8.82	135.52

Lithium Battery Series for UPS

This series is specifically designed lithium batteries for UPS backup use.

Cabinet/Rack

Provide cabinet/accessory options tailored to your equipment and battery.

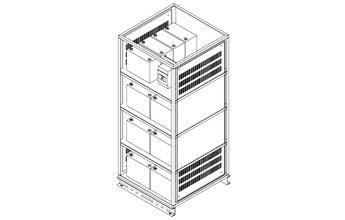

BATTERY CABINET SYSTEMS

KUNG LONG storage cabinets are a superior solution for the safe storage of top terminal batteries and devices containing them.

The Battery cabinet is designed to house standard VRLA Batteries with a variable capacity range.

GENERAL FEATURES

1. Robust cabinet

2. Extreme durability

3. Pressure relief filters eliminate smoke and fumes

4. Customized protection device tailored to match your specific power rating

5. Chemical Safety to protect shelves from H2SO4 corrosion that can cause risks of electric shock and short circuit (fire)

BATTERY RACK SYSTEMS

KUNG LONG standard racks have been designed for all types of stationary battery models.

These easy-to-use racks are strong, have a flexible design, and are acid-proof.

Please contact LONG for information on the different rack lengths and designs available

GENERAL FEATURES

1. Extreme durability

2. Acid-proof protection

3. Floor mounting brackets included with all racks

4. Racks can be customized with earthquake safety features according to the customer / project requirement

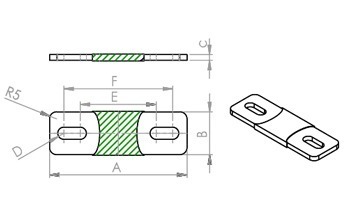

COOPER CONNECTOR

● The product image is for reference purpose. The actual product may be different.

● If you have any connector or wiring needs, please contact our sales team.

● The contents are subjected to change without prior notive.

Metric mm/kg
Imperial inch/lbs

Bolt screw size (D)	L (A) (mm)	L (B) (mm)	H (C) (mm)	E (mm)	F (mm)
M6	115	30	4	71	97
M6	303	30	4	259	285
M6	236	30	4	192	218
M6	353	30	4	309	335
M6	370	30	4	333.5	352.5
M6	417	30	4	380.5	399.5
M6	370	30	10	333.5	352.5
M6	417	30	10	380.5	399.5
M6	134	18	2.5	99	119
M6	107	25	2.5	73	87
M6	140	40	5	95	117

Pro Data Table: Table not found.

General Purpose

Telecom

Starting Power

MOTIVE / HME MOBILITY

Renewable Energy

Electronic/
Security Back Up

Marine/RV-AGM Dual Purpose
